※ Green and environmentally friendly
Simply use a pile driver to rotate the spiral pile into the soil, without the need for excavation; Not damaging vegetation and ecological environment; No pollution.
※ Strong applicability
The foundation pile is suitable for various geological conditions such as shallow beaches, deserts, grasslands, Gobi, and gravel formations, and the installation quality is not affected by groundwater or frozen soil; Good climate adaptability, and foundation installation can also be completed in severe cold weather conditions.
※ High cost-effectiveness
The pile body has good integrity, continuous compactness, no pile breakage, and strong foundation bearing capacity. Adopting high-quality hot-dip galvanized steel, with a galvanized layer of 60-80um and good anti-corrosion performance.
※ High installation efficiency
The pile driving can be completed in approximately 30 seconds to 3 minutes, without the need for further site repairs.
※ Excellent mechanical properties
Through the design and calculation of mechanical software by dedicated personnel, it is ensured that the mechanical requirements can be met under different geological conditions, environments, and wind and snow pressures.
※ Wide application range
Suitable for solar photovoltaic power plants, small construction projects, amusement facilities, guardrails, lamp columns, advertising boards, tents, etc.

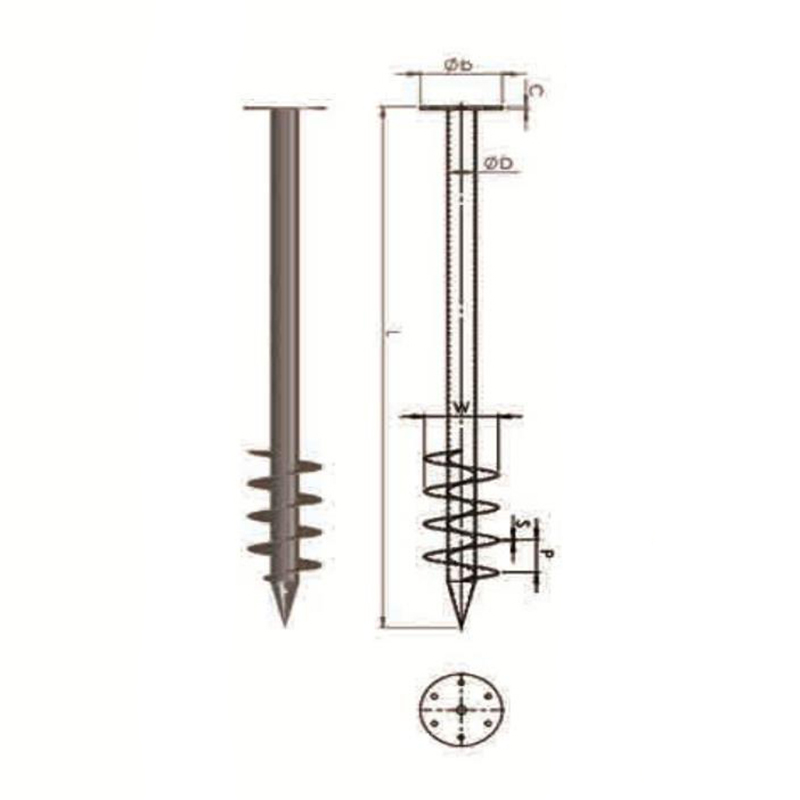

| product number | length(mm) | outside diameter(mm) | wall thickness(mm) | flange outer diameter(mm) | blade(mm) | material quality | Surface Treatment |
| YH-FN76*1200 | 1200 | 76 | 3.0-4.0 | 160-220 | 5*198 Four leaf blade | Q235B | galvanized |
| YH-FN76*1600 | 1600 | ||||||
| YH-FN76*1800 | 1800 | ||||||
| YH-FN89*1200 | 1200 | 89 | |||||
| YH-FN89*1600 | 1600 | ||||||
| YH-FN89*1800 | 1800 | ||||||
| YH-FN114*1200 | 1200 | 114 | |||||
| YH-FN114*1600 | 1600 | ||||||
| YH-FN114*1800 | 1800 |
