Product Features
Adopting hot-dip galvanized surface treatment, with a thickness of 60-85um;
The combination of pile body and column provides better stability;
Suitable for various soil types;
Flexible operation, precise positioning, and adjustable height;
Economic, environmentally friendly, green, and recyclable.
Standards and specifications for pile foundation design
GB50068-2001 "Unified Standard for Reliability Design of Building Structures"
GB/T 50009-2001 "Load Code for Building Structures"
GB50011-2001 "Code for Seismic Design of Buildings"
JGJ94-2008 Technical Specification for Building Pile Foundations
JGJ79-2002 Technical Specification for Building Foundation Treatment
GB50017-2003 "Code for Design of Steel Structures"

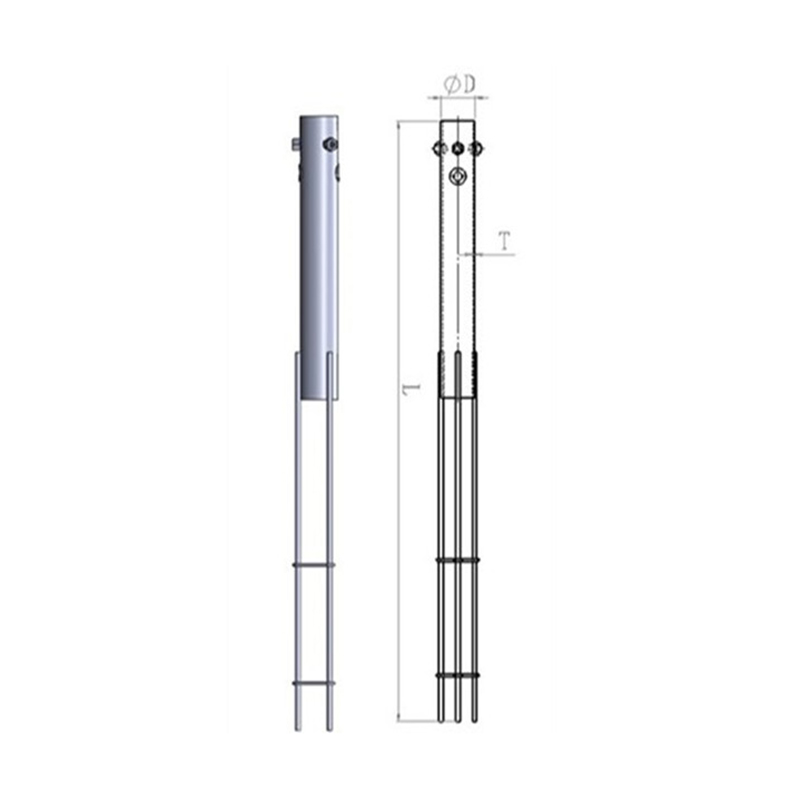

| Technical Parameter | length | outside diameter | wall thickness | Nut aperture |
| Yuhao spiral pile YH-M | L | D | T | |
| YH-M76x1300 | 1300 | 76 | 3-4mm | 3-M16 |
| YH-M76x1600 | 1600 | 76 | 3-4mm | 3-M16 |
| YH-M76x1800 | 1800 | 76 | 3-4mm | 3-M16 |
